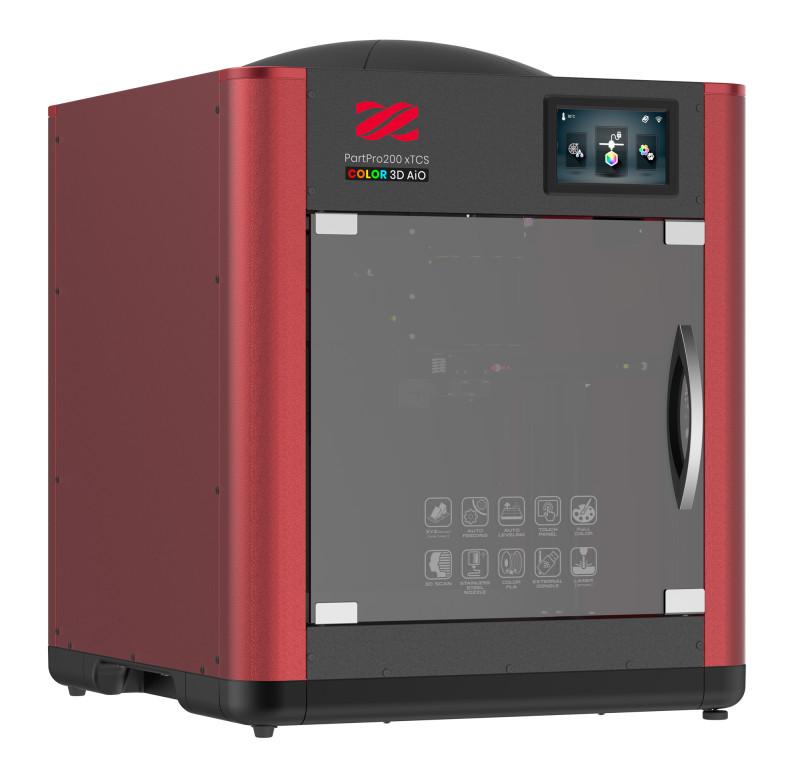

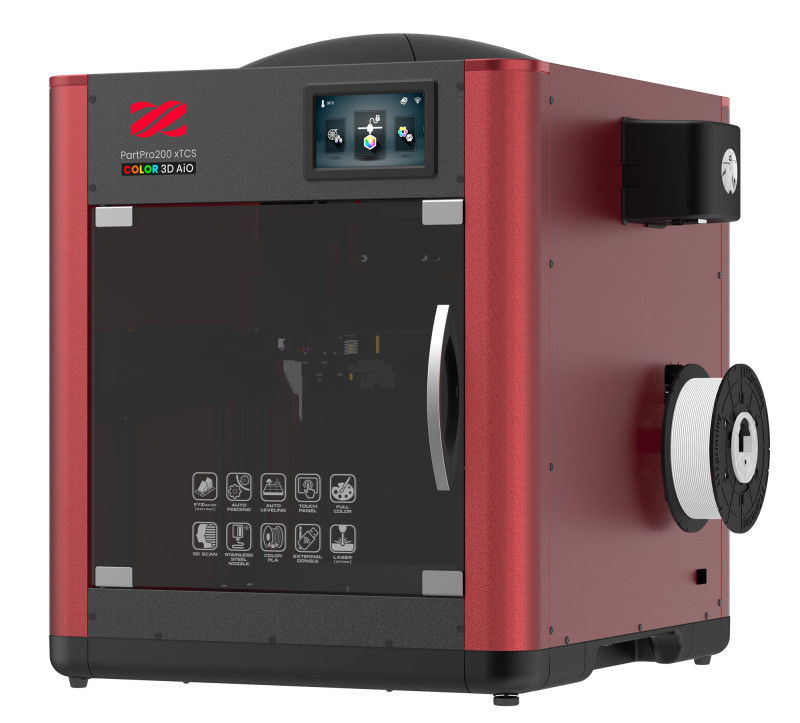

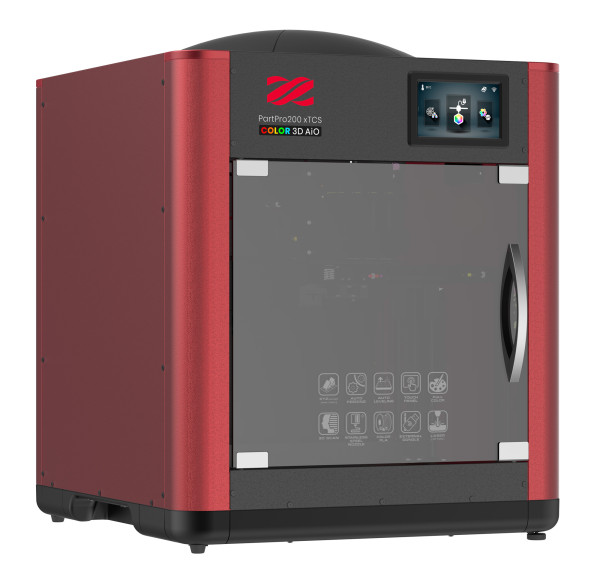

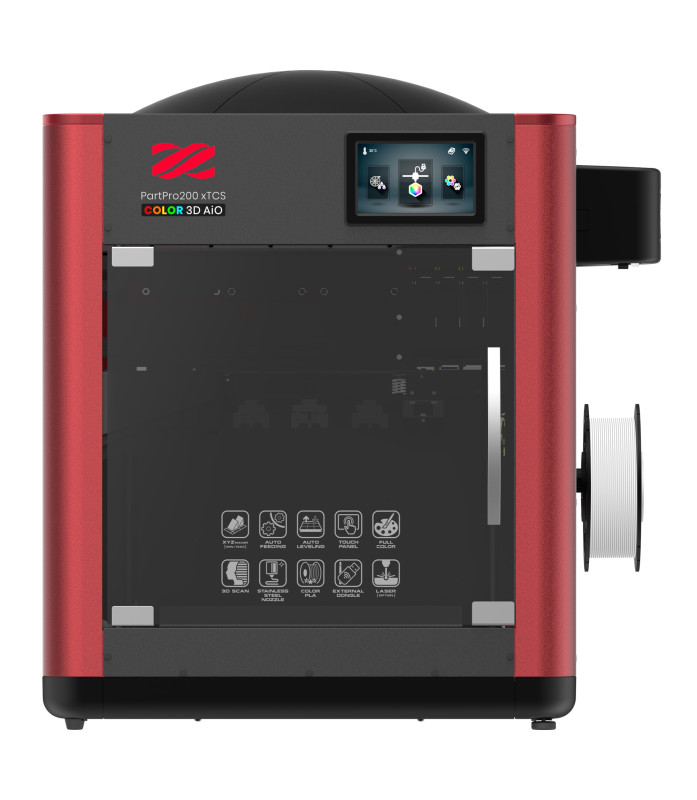

XYZprinting da Vinci Color AiO with 3D Scanner (PartPro200 xTCS)
Produkt Highlights
-
3DColorJet® Technologie für vollfarbige 3D-Drucke
-
Vollautomatische Druckbettnivellierung / -kalibrierung
-
Einfach zu entfernendes, magnetisches Druckbett
-
inklusive 3D Scanner mit einem Scanvolumen von Ø 140 mm x 140 mm Höhe
-
Optional: Lasermodul (nicht im lieferumfang enthalten)
Scannen und Drucken. In Vollfarbe.
Produktivität zählt. Optimieren Sie Ihren Arbeitsablauf beim Modellieren mit dem integrierten 3D-Scan-Modul. Scannen Sie Ihre Objekte in 3D, bearbeiten und drucken Sie Ihre Modelle anschließend direkt in Vollfarbe aus. Ein umfassendes Konzept vereint in einem 3D-Drucker.
Nahtlose Integration
Optimieren Sie Ihre Scans mit XYZscan Color. Unsere Scan-Software, die mit einer Vielzahl an Einstellungsmöglichkeiten beste Scan-Ergebnisse gewährleistet. Scan-Dateien können in den Formaten .obj und .stl exportiert werden, was die Nachbearbeitung mit XYZmaker und alternativer Software möglich macht.
Aufrüstbare Laser Gravur
Bonus. Der da Vinci Color AiO besitzt die Erweiterungsmöglichkeit zur Lasergravur. Der Druckkopf lässt sich mühelos und unkompliziert mit dem Lasergravur-Addon auswechseln. Verleihen Sie Ihren kreativen Projekten einen professionellen Touch. Gravieren Sie auf einer Vielzahl von Materialen wie Papier, Karton, Leder, Holz oder Kunststoff.

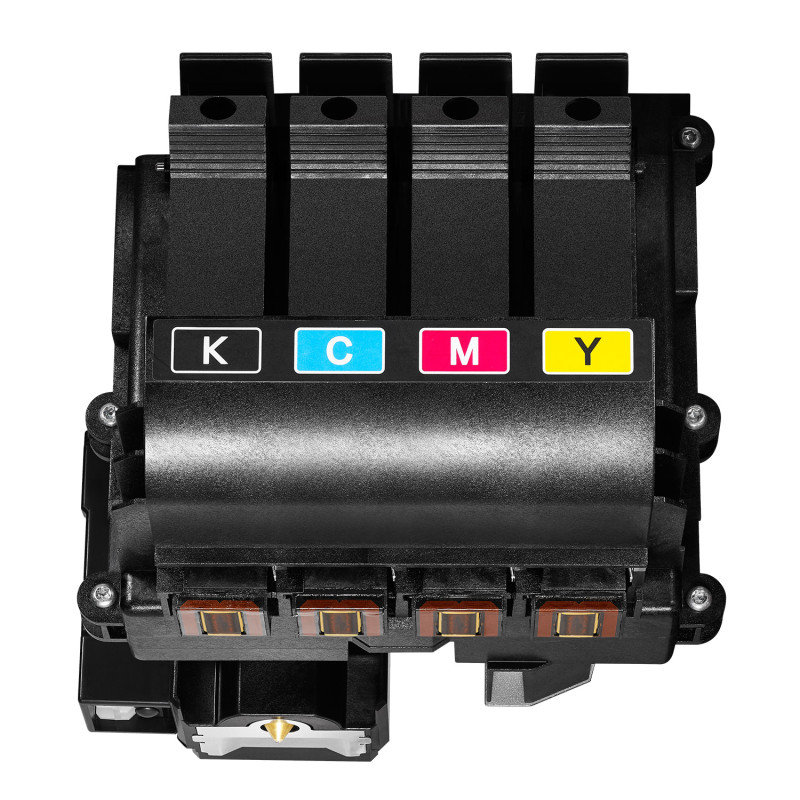

3DColorJet® Technologie
Technische Daten
Printing Properties | |
Print Technology | Color Texture Inkjet Printing 3D Structure Fused Filament fabrication (FFF) |
Max. Build Area (WxDxH) | Mono Color Printing 200 x 200 x 150 mm Full Color Printing 185 x 185 x 150 mm |
Layer Resolution | 100 - 400 microns |
XY Positioning Precision | X/Y 12.5 micron |
Z Positioning Precision | Z : 0.0004 mm |
Printing Software | XYZmaker Suite |
Supported File Formats | .amf , .ply , .obj , .stl , .3cp, .3mf, .igs, .stp |
Max. Moving Speed | 180 mm/s |
Material | |

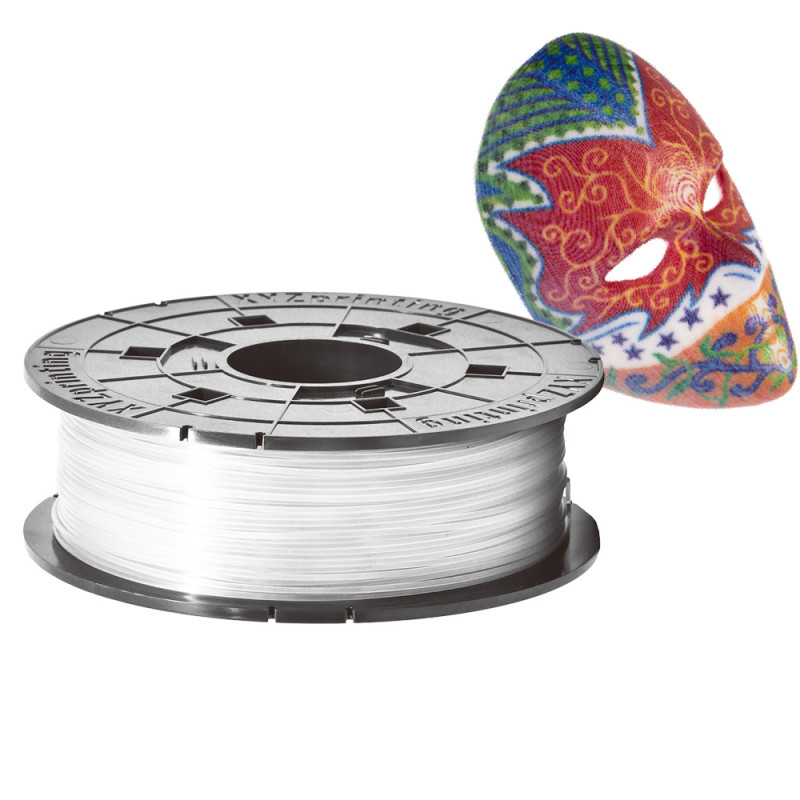

Material Compatibility | 3D Color-inkjet PLA / PLA / Antibacterial PLA / Tough PLA / PETG / *Premium Metallic PLA / *XYZ Carbon Fiber (*Optional Extruder) |
Filament Diameter | 1.75 mm |
Ink Type | Separate Ink Cartridge (CMYK) |
Extruder | |
Nozzle Diameter | 0.4 mm |
Number of Nozzles | 1 |
Print Bed | |
Print Bed | Ez-removable Metal |
Calibration | AUTO |
Scanning Properties | |
Scan Technology | Photogrammetry 3D |
Scan Size (Ø x H) | 5 x 5 cm ~ 14 x 14 cm |
Scan Resolution | 5M pixel |
Scan Accuracy | 1.48 mm |
Turntable Payload | ≦ 3 Kg/6.6lbs |
Scan Software | XYZscan Color |
Output File Types | .stl, .obj |
Engraving Properties | |
Engraving Area | 20 cm x 20 cm |
Laser Engraver | Optional |
Laser Wavelength | 450nm + 5nm/-10nm InGaN |
Output Power | 350mW ± 10% |
Laser Engraving Software | XYZengraver |
Supported Image Formats | .jpg / .png / .gif /.bmp |
Hardware | |
Filament Feeding System | YES |
Stepper Motors | 1.8° HB Stepper Motors |
User Interface | 5" Touch Panel LCD |
Language | Multilingual |
Connectivity | USB 2.0 Cable, WiFi 802.11 b/g/n, USB Flash Drive |
System Requirements | |
Operating Systems | Windows 7 / 8 / 8.1 / 10 (64 bits) macOS 10.10 / 10.11 / 10.12 / 10.13 / 10.14 |
Operating Systems on Mobile Devices | Android 5.0 and above iOS 9 and above (iPad Only) |
Minimum Hardware Requirements | For PC: CPU 4th Generation Intel® Core™ i5 Processor or more / RAM: 8GB / Hard disk space: 20GB or more For MAC: RAM: 8GB / Hard disk space: 20GB or more |
Operating Requirements | |
Power Requirements | 100V~240V 240W |
Operating Temperature | 15 ~ 30 °C |
Operation Humidity | 30 ~ 60 % RH (no condensation) |
Storage Temperature-Filament | 10 ~ 40 °C |
Storage Temperature-Ink cartridge | 15 ~ 35 °C |
Size & Weight | |
Product Dimensions (WxDxH) | 600 x 581 x 640 mm |
Product Weight | 34 kg |
Packed Dimensions (WxDxH) | 710 x 700 x 820 mm |
Packed Weight | 45 kg |
